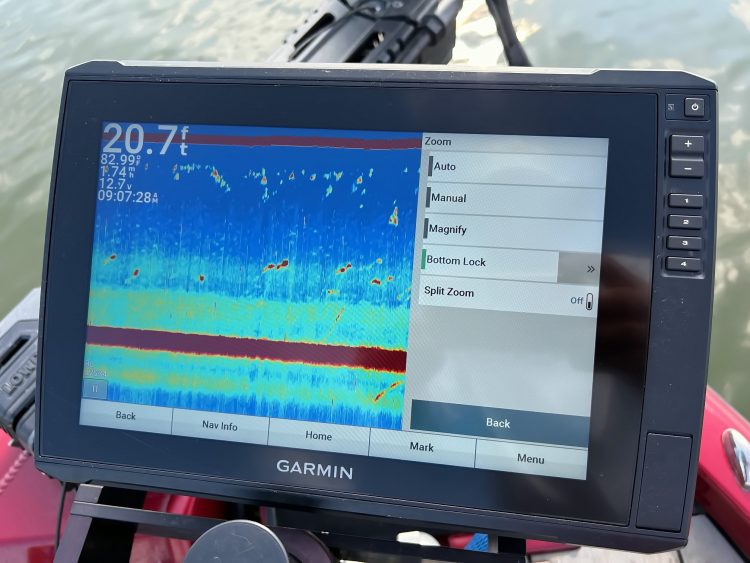

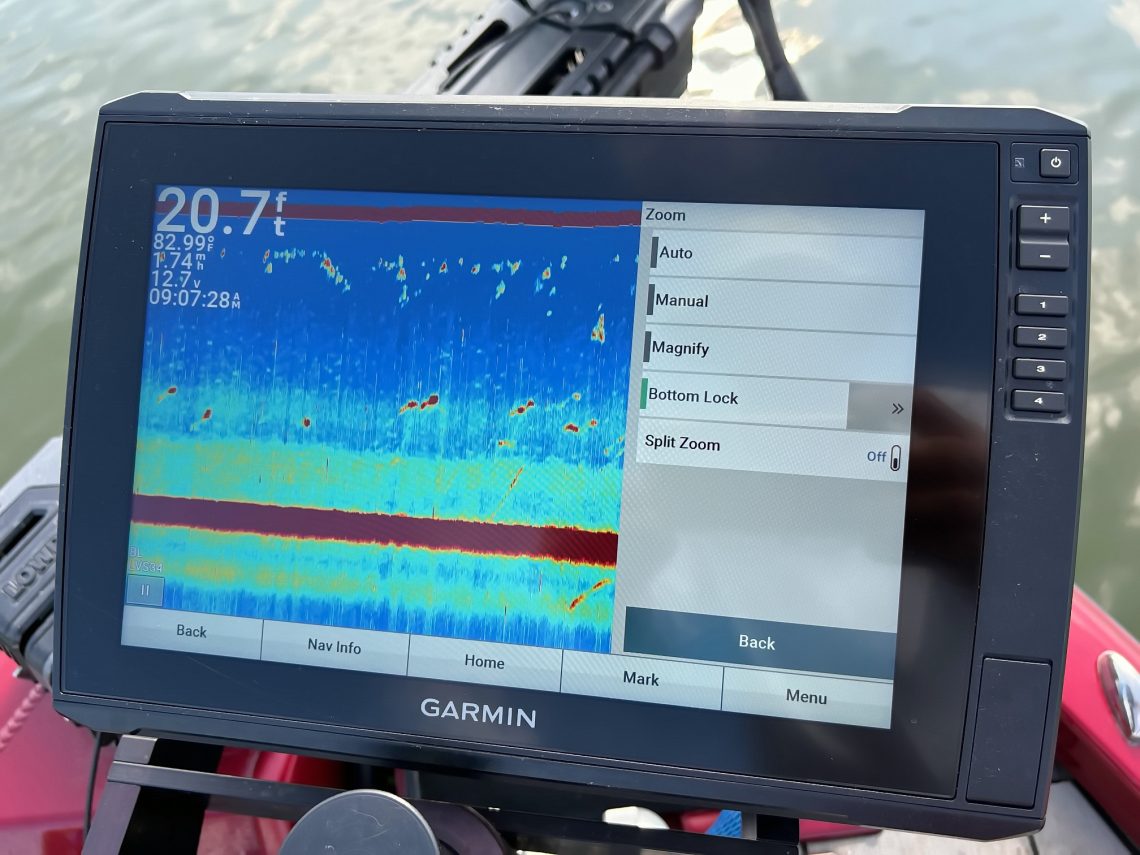

Bottom lock can be used to zoom in on the bottom layer when searching for fish or baitfish.
Zoom, Zoom to See More
Story and photos by Brad Wiegmann
Zooming in on fish, baitfish, structure and cover is the easiest way to see what’s under your boat.
The question is to zoom or not to zoom in your 2D traditional sonar view? Zooming in on your sonar view allows an angler to see an area magnified. This can make it easier to identify fish, baitfish, structure or cover like brush piles and laydowns.
Anglers can zoom in Traditional 2D 83kHz, 200kHz, and LOW and HIGH compressed high-intensity radar pulse (CHIRP) sonar. It’s important to note that CHIRP sonar with its continuous range of frequencies (ranging from high to low in a single transmission with returns from each frequency during the transmission) results in better target separation along with sharp, defined arches compared to traditional 2D sonar. Anglers using CHIRP sonar and zooming will have better resolution along with sharper imaging.
One of the easy ways to use zoom is by split screening the sonar screen. Do that by making one screen open to traditional 2D CHIRP sonar and the other traditional 2D CHIRP sonar, but go into the zoom menu and zoom in one to two times. The zoomed-in screen will easily identify each sonar return as individual fish, balls of baitfish, structure or cover.
There are several options when it comes to zooming in the sonar screen mode. The most popular and most used zoom is auto mode. In that mode, the depth and zoom are automatically set by the marine electronic sonar unit. Changing the sonar unit off of auto mode is something that most novice anglers don’t typically do. However, the more advanced angler will constantly be changing the sonar unit settings, including the zoom mode.
Several of the Garmin, Lowrance and Humminbird sonar units allow an angler to set the zoomed area from the surface to the bottom. The zoomed area can be zoomed increased or decreased in magnification within the zoomed area.
Another mode is manual where an angler can set the depth range of the sonar unit manually. Manual model is rarely used except by advanced sonar anglers.
When it comes to zooming in and out, touch-screen sonar units are the best choice. Multi-function key pads make the angler usually press directional arrows up and down till they get where they want to zoom in. Compare that to just touching the screen and quickly pushing the plus or minus keys to increase or decrease the area the angler wants to zoom into. Some touch sonar units will zoom in and out by pinching your fingers.
Target separation is key when searching for baitfish or fish. It’s not unusual for baitfish or fish to hide just off the bottom or suspended close to the bottom. Bottom Lock mode sets the zoom to the floor bottom. Normally the unit will focus on the bottom 25 feet in 150-foot depth when in bottom lock. A good general rule of thumb is when the unit is in bottom lock, the sonar unit will adjust, keeping the lower third of the floor bottom within the screen range.
